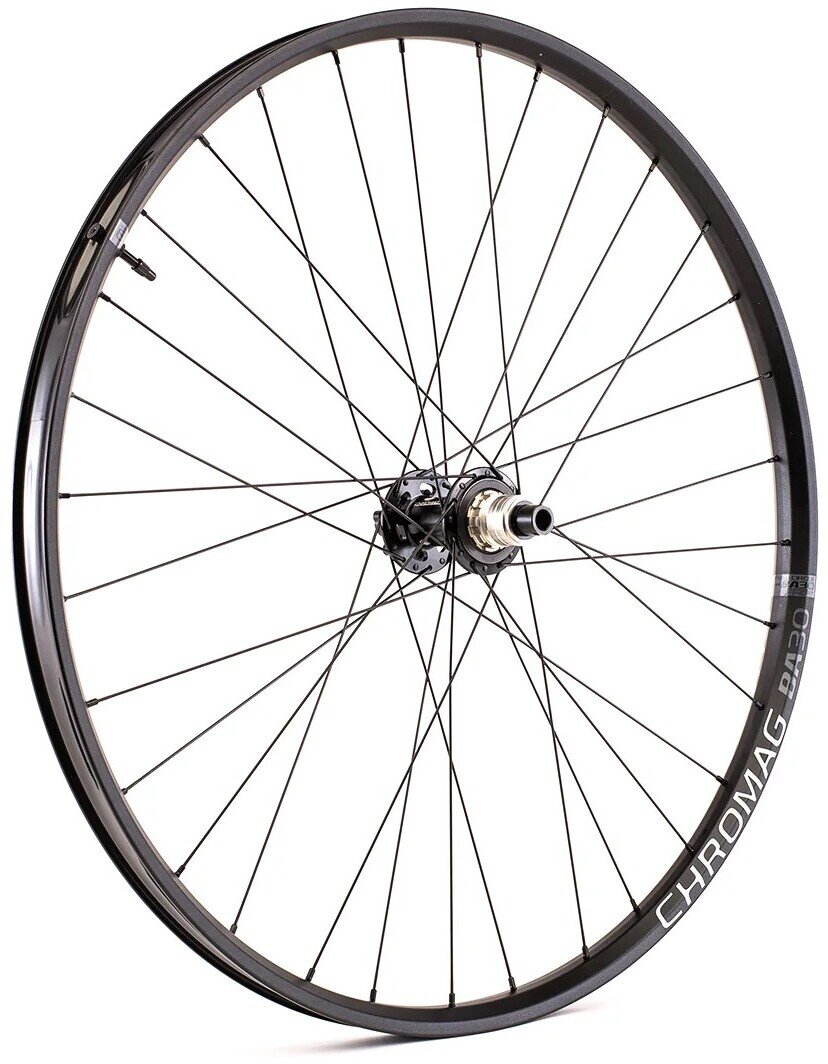

Chromag BA30 Rear Wheel MS

Chromag BA30 Rear Wheel MS
$495.00
Color: Black
Cassette Compatibility: Microspline
Spoke Count: 32
Size: 29 inch
Rotor Type: 6-Bolt
Please select options Unavailable

Details

The BA30 is a quality alloy rim designed to withstand a real beating.

This is the rim for high-impact riding when the trails are rough and rugged. With an internal bracing structure, the BA30 has torsional stiffness for directional control in demanding circumstances. The BA30 features a thick bead wall adjacent the tire to resist impact deformation, with a wider, rounded top-edge to reduce sidewall cuts. The nipple/spoke bed is oriented to the spoke direction to reduce weakness caused by bend in the spoke at the nipple hole. The BA30 is made with premium alloy, extruded with an internal brace profile and carefully formed for consistent shape. It is then fusion welded and ground for a strong precise finish. The fusion welding system leaves a perfect seamless joint that becomes the strongest section of the rim ensuring that your rim won't split if you impact at the seam.

The rims are laced to our new R4 hub. The R4 is designed to be a solid, reliable hub with a durable axle assembly and robust set of bearings. We're using a tried and tested 4-pawl arrangement with 36 points of simultaneous engagement. What sets it apart is the large radius that the pawls are positioned on, reducing leverage at the point of engagement.

We opted for a Chromoly steel axle for stiffness and longevity. Using steel allows a smaller diameter axle which in turn gives us more room to use larger, sealed bearings (we use USA made enduro bearings). The rear axle assembly uses thread-on end caps which are easy to service and resist compression from the frames axle (they don’t fall off during trailside repairs either!). R4 front hubs are available with standard or ‘torque’ end caps and rear hubs are available with XD, HG, or Microspline drivers. We supply all parts for servicing to ensure that R4 hubs can be maintained well into the future!

Specifications:
BA30:

Material: Premium extruded alloy
Finish: Fusion welded seam-ground finish
Profile: Internal bracing profile / Impact resistant design
Tubeless: Tubeless Ready
Rim Weight: 27.5": 611 g / 29": 624 g
Internal Width: 30 mm
Valve: Presta
Max Tire Pressure 2.4": 45 PSI
Max Tire Pressure 2.8": 30 PSI
Max Spoke Tension: 125Kgf
Build Info: 27.5" ERD: 566 mm / 29" ERD: 604 mm
Hole Count: 32

R4 Rear:

Axle Diameter: 12 mm
Spacing: Boost 148 mm
Driver: XD, HG or MS
Tubeless: Tubeless Ready, Taped, Valves Included
Engagement: 4-pawl, 36 Point
Spokes: 32

Specs

Spoke Count 32
Cassette Compatibility Microspline

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Microspline / Black / 6-Bolt / 29 inch / 32 826974040978 184-004-026 210000042067
