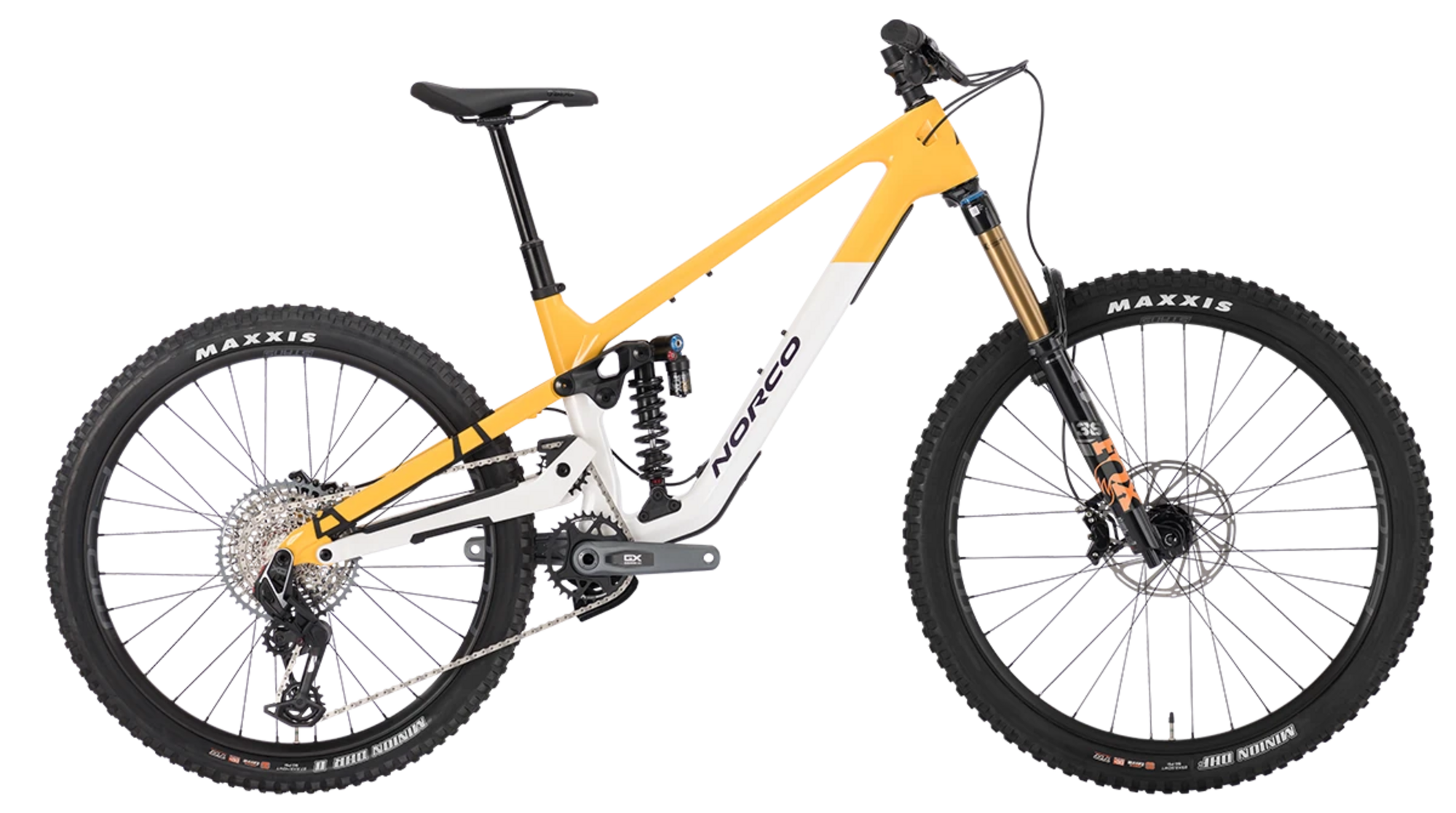

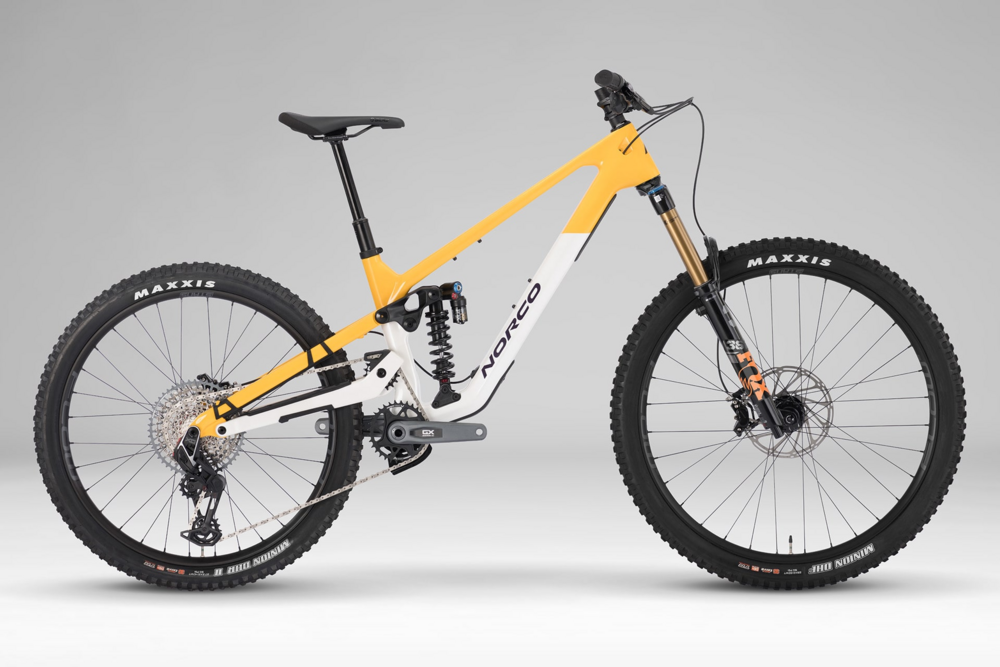

Norco Sight C1 MX
Details
Whether you're carving down a steep loam line, dropping in for an enduro stage, or heading into the backcountry for an all-day epic, this bike performs. With increased rearward axle path, idler, and the innovative VPSHP suspension layout, this new design gives the Sight next level confidence and capability, up or down the mountain. With 160/150mm of travel, the 2024 Sight takes the best of the Range Platform and has tighten it up into a light, pedal friendly, maneuverable, high-pivot package.
Available with a 27.5" rear wheel (MX), as well as 29" in some markets. Swapping the linkarm and lower shock mount with the "Missing Link Kit" converts between 27.5" and 29" to let you pick the wheelsize that suits you best while maintaining geometry and kinematics to ensure consistent fit and bike setup.
- 29" with the option to change to 29"/27.5" with no compromise geometry and kinematics.
- Fox Factory suspension with a DHX2 shock and Sprindex Coil.
- SRAM Code Silver Stealth Brakes.
- Race face carbon 30mm rims.
- SRAM GX Eagle Transmission.
- Weight (S3): 15.9 kg / 35.0 lbs
- Ride AlignedTM – Perfect fit, dialed handling and personalized setup in minutes.
- No Other Way Limited Lifetime Warranty
| Frame Size | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Wheel Size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| Travel (mm front/mm rear) | 160/150 | 160/150 | 160/150 | 160/150 | 160/150 |
| Reach (mm) | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 |
| Stack (mm) | 618 | 627 | 636 | 645 | 654 |
| Head Tube Angle | 64° | 64° | 64° | 64° | 64° |
| Fork Offset (mm) | 44 | 44 | 44 | 44 | 44 |
| Seat Tube Length (mm) | 350 | 370 | 385 | 430 | 445 |
| Effective Seat Tube Angle | 77° | 77.25° | 77.5° | 77.75° | 78° |
| Rear Centre Length (mm) | 420 | 424 | 428 | 432 | 436 |
| Bottom Bracket Drop (mm) | 25/4 | 25/4 | 25/4 | 25/4 | 25/4 |
| Bottom Bracket Height (mm) | 353 | 353 | 353 | 353 | 353 |
| Horizontal Top Tube (mm) | 565 | 589 | 613 | 637 | 661 |
| Wheelbase (mm) | 1181 | 1214 | 1247 | 1281 | 1314 |
| Standover (mm) | 673 | 679 | 685 | 708 | 720 |
| Head Tube Length (mm) | 105 | 115 | 125 | 135 | 145 |
| Trail (mm) | 135 | 135 | 135 | 135 | 135 |
| Recommended Seatpost Drop (mm) | 150 | 170 | 200 | 200 | 230 |
| Maximum Post Insertion (mm) | 250 | 270 | 300 | 300 | 330 |
| Stem Length (mm) | 40 | 40 | 40 | 40 | 40 |
| Crank Length (mm) | 170 | 170 | 170 | 170 | 170 |
| Tire Size | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" |
| Water Bottle Compatible | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| 1 | 150 - 165 | 5'0" - 5'5" |
| 2 | 162 - 172 | 5'4" - 5'8" |
| 3 | 170 - 180 | 5'7" - 5'11" |
| 4 | 177 - 187 | 5'10" - 6'2" |
| 5 | 185 - 200 | 6'1" - 6'6" |
Specs
| Pedals | Sold Seperately |
|---|---|
| Fork | Fox Factory FLOAT 36, HSC / LSC / LSR, GRIP2, 160mm, 44mm Offset, Fender Included |
| Hubs | Front: Race Face Vault 15x110mm Boost, 6-Bolt Rear: Race Face Vault 12x148mm Boost, XD, 6-Bolt |
| Rims | Stan's Flow S2, Black 32H, 29"/27.5" |
| Stem | Alloy CNC, 40mm Length. 35mm Clamp |
| Chain | SRAM GX Eagle T-Type |
| Frame | Sight Carbon, VPS HP, 150mm Travel, UDH Compatible |
| Tires | Front: Maxxis Minion DHF 2.5', 3C, MaxxTerra / EXO+ / TR, Folding Rear: Maxxis Minion DHR II 2.4" WT, 3C, MaxxTerra / EXO+ / TR, Folding |
| Brakes | SRAM Code Silver Stealth, 4-Piston, Sintered Pads |
| Rotors | Front: SRAM Centerline 200mm Rear: SRAM Centerline 180mm |
| Saddle | SDG Bel Air V3 |
| Spokes | Sapim Race Butted Black Stainless |
| Headset | FSA #57 E Sealed Bearing |
| Crankset | SRAM GX Eagle T-Type, 32T, 170mm |
| Seatpost | One Up adjustable dropper, 34.9mm, 150mm (1), 180mm (2), 210mm (3, 4), 240mm (5) |
| Shifters | SRAM Pod Ultimate Controller |
| Handlebars | Deity Ridgeline 35, 800mm, 25mm Rise |
| Rear Shock | Fox Factory DHX2 Coil, HSC/LSC, HSR/LSR 2 pos., 60x205mm Trunnion, Sprindex Spring |
| Tape/Grips | DMR DeathGrip |
| Brake Levers | SRAM Code Silver Stealth |
| Bottom Bracket | SRAM DUB BSA Threaded |
| Rear Derailleur | SRAM GX Eagle AXS T-Type |
| Cassette/Freewheel | SRAM Eagle T-Type 1275 10-52T |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| White/Yellow / SZ1 / 29-inch front / 27.5-inch rear | 58817624872 | 620214154 | 210000040029 |
| White/Yellow / SZ5 / 29-inch front / 27.5-inch rear | 58817625282 | 620214158 | 210000040032 |
| White/Yellow / SZ3 / 29-inch front / 27.5-inch rear | 58817625268 | 620214156 | 210000039360 |
| White/Yellow / SZ2 / 29-inch front / 27.5-inch rear | 58817624889 | 620214155 | 210000040030 |
| White/Yellow / SZ4 / 29-inch front / 27.5-inch rear | 58817625275 | 620214157 | 210000040031 |
