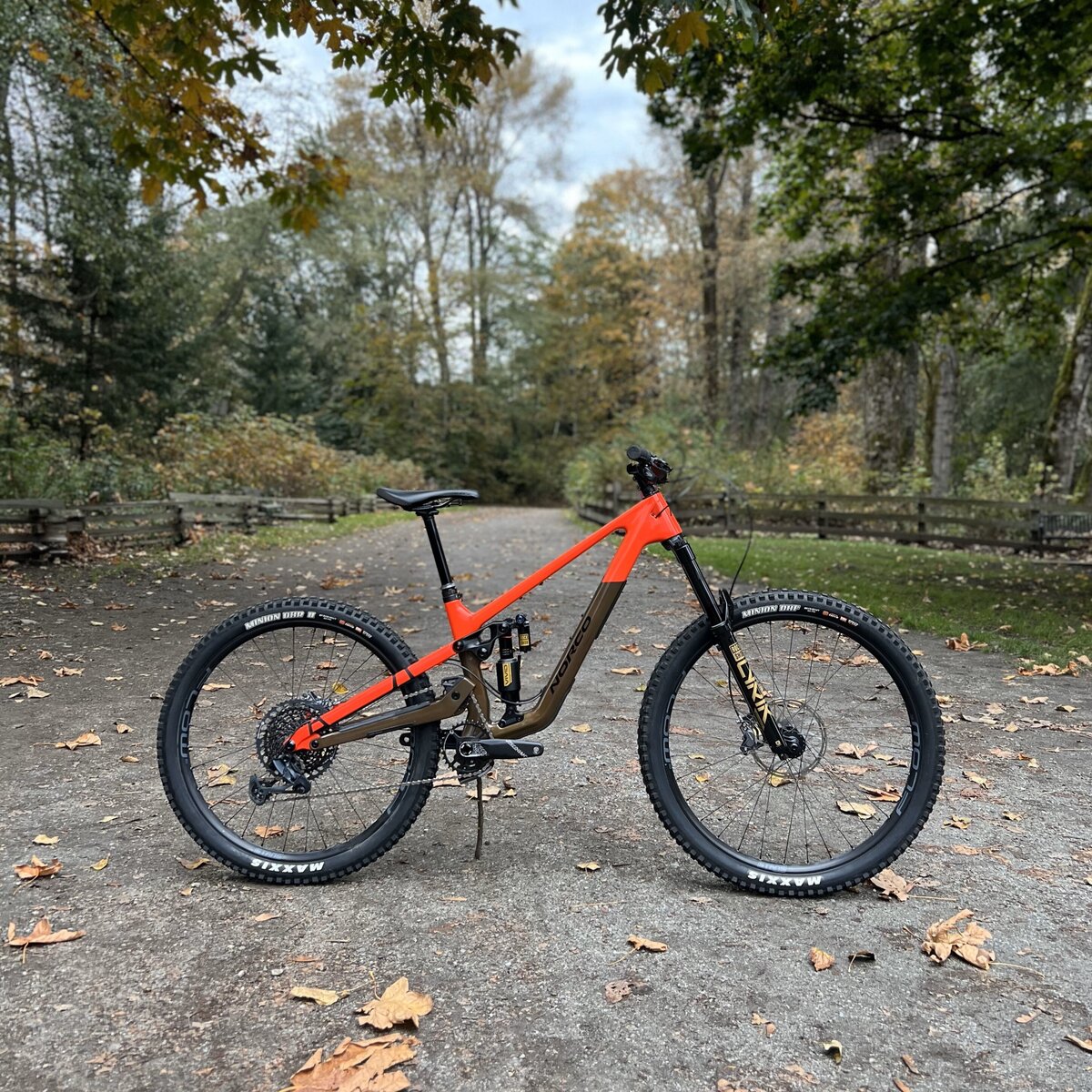

Norco Sight C2 MX EX-DEMO

Norco Sight C2 MX EX-DEMO
$4,999.00
$8,099.00
Color: Brown/Red
Size: Select size
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable

Details

This is a lightly used bicycle from Norco's 2024 demo fleet.

Whether you're carving down a steep loam line, dropping in for an enduro stage, or heading into the backcountry for an all-day epic, this bike performs. With increased rearward axle path, idler, and the innovative VPSHP suspension layout, this new design gives the Sight next level confidence and capability, up or down the mountain. With 160/150mm of travel, the 2024 Sight takes the best of the Range Platform and has tighten it up into a light, pedal friendly, maneuverable, high-pivot package.

Available with a 27.5" rear wheel (MX), as well as 29" in some markets. Swapping the linkarm and lower shock mount with the "Missing Link Kit" converts between 27.5" and 29" to let you pick the wheelsize that suits you best while maintaining geometry and kinematics to ensure consistent fit and bike setup.

- RockShox Ultimate suspension. SRAM Code Silver Stealth Brakes.
- Race face carbon 30mm rims.
- SRAM XO Eagle Transmission.
- Weight (S3): 15.6 kg / 34.4 lbs
- Ride AlignedTM – Perfect fit, dialed handling and personalized setup in minutes.
- No Other Way Limited Lifetime Warranty

Sizes:
Frame Size12345
Wheel Size29"/27.5" 29"/27.5"29"/27.5"29"/27.5"29"/27.5"
Travel (mm front/mm rear)160/150 160/150160/150160/150160/150
Reach (mm)422.5 447.5472.5497.5522.5
Stack (mm)618 627636645654
Head Tube Angle64° 64°64°64°64°
Fork Offset (mm)44 44444444
Seat Tube Length (mm)350 370385430445
Effective Seat Tube Angle77° 77.25°77.5°77.75°78°
Rear Centre Length (mm)420 424428432436
Bottom Bracket Drop (mm)25/4 25/425/425/425/4
Bottom Bracket Height (mm)353 353353353353
Horizontal Top Tube (mm)565 589613637661
Wheelbase (mm)1181 1214124712811314
Standover (mm)673 679685708720
Head Tube Length (mm)105 115125135145
Trail (mm)135 135135135135
Recommended Seatpost Drop (mm)150 170200200230
Maximum Post Insertion (mm)250 270300300330
Stem Length (mm)40 40404040
Crank Length (mm)170 170170170170
Tire Size2.35" – 2.6" 2.35" – 2.6"2.35" – 2.6"2.35" – 2.6"2.35" – 2.6"
Water Bottle Compatible1 x 750 mL 1 x 750 mL1 x 750 mL1 x 750 mL1 x 750 mL
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
1150 - 165 5'0" - 5'5"
2162 - 172 5'4" - 5'8"
3170 - 180 5'7" - 5'11"
4177 - 187 5'10" - 6'2"
5185 - 200 6'1" - 6'6"

Specs

Pedals Sold Seperately
Fork RockShox Lyrik Ultimate, Charger 3, 160mm, 44mm Offset, Fender Included
Hubs Front: Sealed Bearing 15x110mm Boost, 6-bolt Rear: Race Face Trace 12x148mm Boost, XD, 6-Bolt
Rims Stan's Flow S2, Black 32H, 29"/27.5"
Stem Alloy, 40mm Length, 35mm Clamp
Chain SRAM SX Eagle
Frame Sight Carbon, VPS HP, 150mm Travel, UDH Compatible
Tires Front: Maxxis Minion DHF 2.5', 3C, MaxxTerra / EXO+ / TR, Folding Rear: Maxxis Minion DHR II 2.4" WT, 3C, MaxxTerra / EXO+ / TR, Folding
Brakes SRAM Code Bronze Stealth, 4-Piston, Sintered Pads
Rotors Front: SRAM Centerline 200mm Rear: SRAM Centerline 180mm
Saddle SDG Bel Air V3
Spokes DT Competition Butted Black Stainless
Headset FSA #57 E, Sealed Bearing
Crankset Truvativ Descendent 6K Eagle, 32T, 170mm
Seatpost TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5)
Shifters SRAM NX Eagle
Handlebars 6061 Alloy, 800mm, 25mm Rise
Rear Shock RockShox Vivid Ultimate Air, 205x60 Trunnion
Tape/Grips DMR DeathGrip
Brake Levers SRAM Code Bronze Stealth
Bottom Bracket SRAM DUB BSA Threaded
Rear Derailleur SRAM GX Eagle Lunar
Cassette/Freewheel SRAM PG1275 Eagle 10-52T

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Brown/Red / SZ2 / 29-inch front / 27.5-inch rear 0620314155DEMO 210000041049
Brown/Red / SZ5 / 29-inch front / 27.5-inch rear 06203141S8DEMO 210000040990
Brown/Red / SZ1 / 29-inch front / 27.5-inch rear 06203141S4  210000042238
